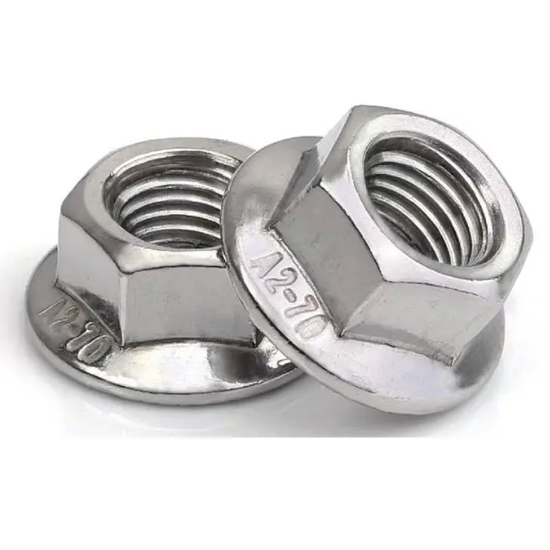

FLANGE NUT WITH SARRETION
Description
| THREAD TYPE | DIAMENSIONAL STANDARD | MECHANICAL STANDARD | MARKING | PROOF STRESS | MATERIAL | SIZE RANGE | ||
| METRIC | DIN 6923 | ISO 3506 -2 | A2-70 | Min 700 Mpa | SS 304 / SS 304L | Range:M5-M12 AND 1/4″TO 1/2″ | ||
| A2-80 | Min 800 Mpa | |||||||
| A4-70 | Min 700 Mpa | SS 316 / SS 316L | ||||||
| A4-80 | Min 800 Mpa | |||||||
| INCHES | ANSI B18.2.2 | ASTM F 594 | F594 C | Min 100 ksi | SS 304 / SS 304L | |||
| F594 D | Min 85 ksi | |||||||
| F594 G | Min 100 ksi | SS 316 / SS 316L | ||||||
| F594 H | Min 85 ksi | |||||||
