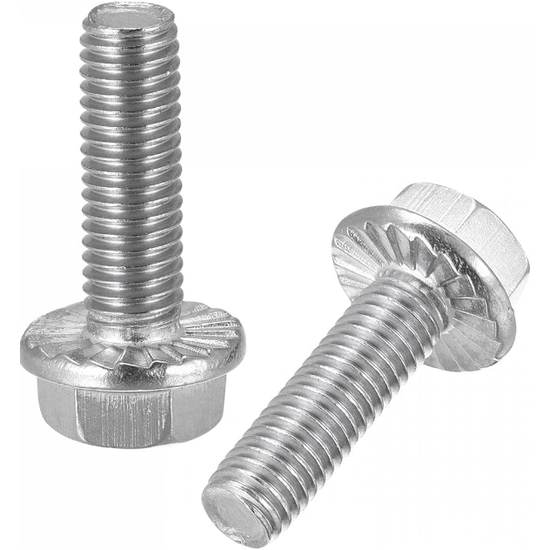

HEX FLANGE SCREW WITH SARRATION / WITHOUT SARRATION
Description
| THREAD TYPE | DIAMENSIONAL STANDARD | MECHANICAL STANDARD | MARKING | TENSILE STRENGTH | MATERIAL | SIZE RANGE | ||
| METRIC | DIN 6921 | ISO 3506 -1 | A2-70 | Min 700 Mpa | SS 304 / SS 304L | Range:M6-M12 & 1/4″-1/2″ | ||
| A2-80 | Min 800 Mpa | |||||||
| A4-70 | Min 700 Mpa | SS 316 / SS 316L | ||||||
| A4-80 | Min 800 Mpa | |||||||
| INCHES | ANSI B18.2.1 | ASTM F 593 | F593 C | Min 95 ksi | SS 304 / SS 304L | |||
| F593 D | Min 80 ksi | |||||||
| F593 G | Min 95 ksi | SS 316 / SS 316L | ||||||
| F593 H | Min 80 ksi | |||||||
