Description

THREAD TYPE	DIAMENSIONAL STANDARD	MECHANICAL STANDARD	MARKING	TENSILE STRENGTH	MATERIAL	SIZE RANAGE
METRIC	DIN 975 / DIN 976	ISO 3506 -1	A2-50	Min 500 Mpa	SS 304 / SS 304L	Range:M6-M100 AND 1/4″TO 4″ Length:1MTR-2MTR-3MTR- 6MTR, 3FT-6FT-12FT
			A2-70	Min 700 Mpa
			A2-80	Min 800 Mpa
			A4-50	Min 500 Mpa	SS 316 / SS 316L
			A4-70	Min 700 Mpa
			A4-80	Min 800 Mpa
INCHES	ASME B18.31.3	ASTM F 593	F593 C	Min 95 ksi	SS 304 / SS 304L
			F593 D	Min 80 ksi
			F593 G	Min 95 ksi	SS 316 / SS 316L
			F593 H	Min 80 ksi

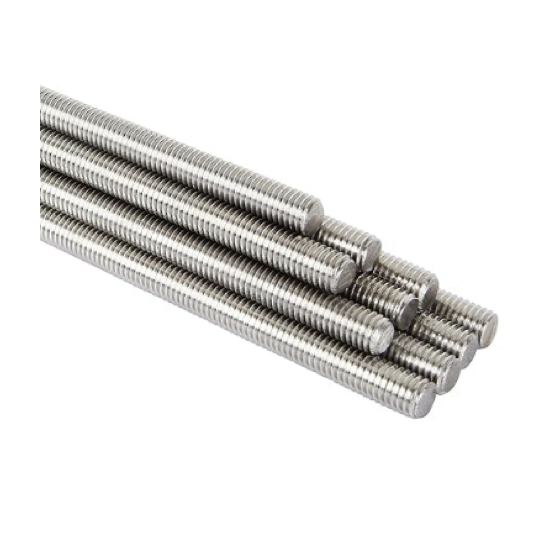

THREAD BAR
