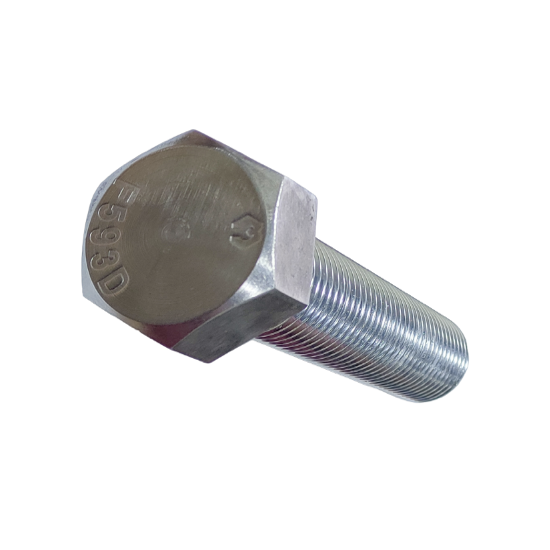

HEAVY HEX SCREW/ BOLT
Description
| THREAD TYPE | DIAMENSIONAL STANDARD | MECHANICAL STANDARD | MARKING | TENSILE STRENGTH |
MATERIAL |
SIZE RANGE |
||
| INCHES | ANSI B18.2.1 | ASTM F 593 | F593 C | Min 95 ksi |
SS 304 / SS 304L |
Range:1/4″to 2″ | ||
| F593 D | Min 80 ksi | |||||||
| F593 G | Min 95 ksi |
SS 316 / SS 316L |
||||||
| F593 H | Min 80 ksi | |||||||
| METRIC | DIN 931 / 933 ISO 4014 / 4017 | ISO 3506 -1 | A2-70 | Min 700 Mpa |
SS 304 / SS 304L |
| A2-80 | Min 800 Mpa | ||||
| A4-70 | Min 700 Mpa |
SS 316 / SS 316L |
|||
| A4-80 | Min 800 Mpa |
